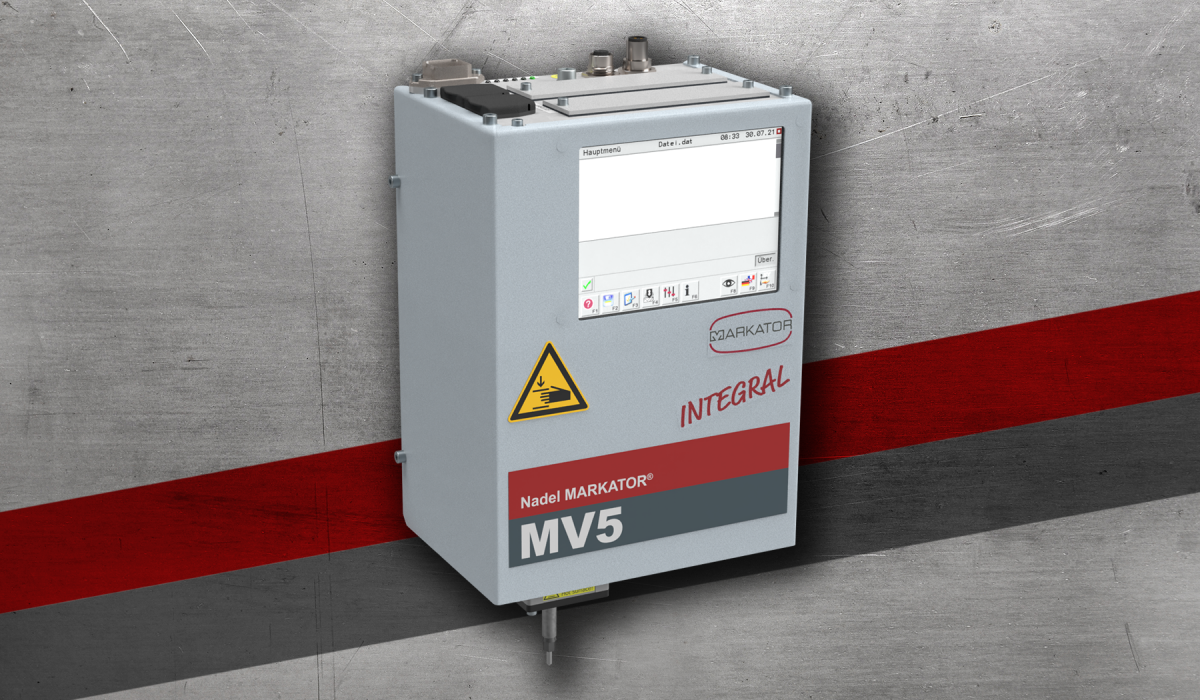

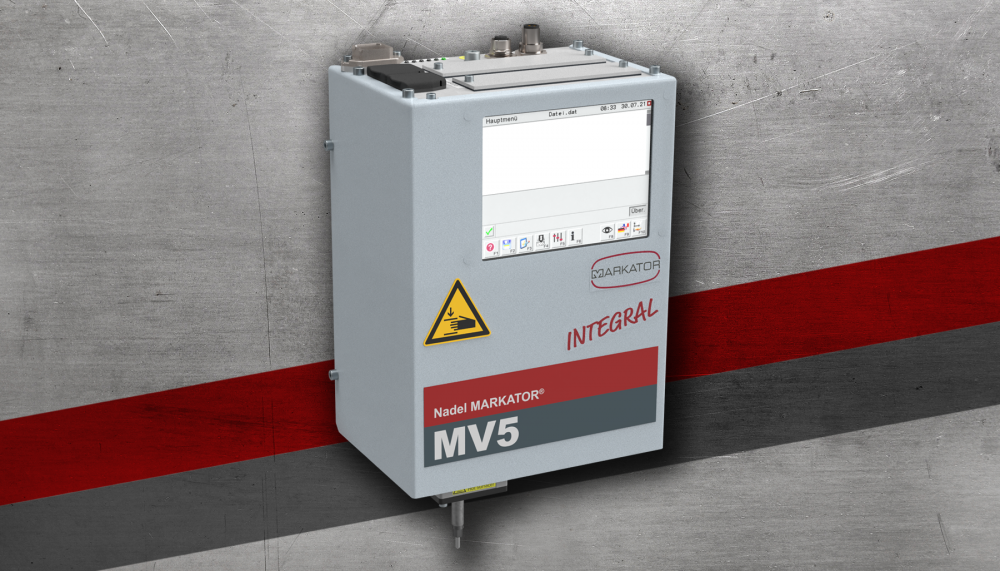

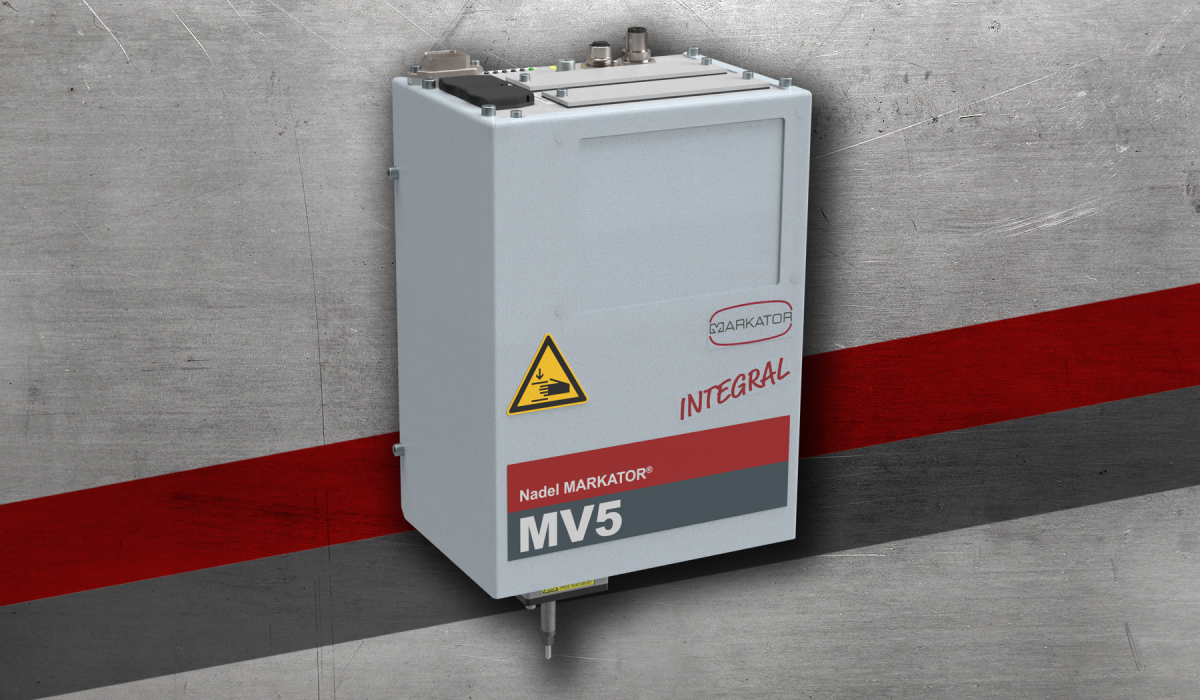

An integration of the marking system MV5 U85/45 INTEGRAL into a production line is easily possible. The space-saving and powerful marking system has an internally installed control unit and is electromagnetically driven. This eliminates the need for an external control unit and compressed air cabling.
The optional display is used for simplified and fast visualization of the programming directly on the device.
The marking system can be used independent of position and convinces by its reliability, especially in wear.
Marking areas (x/y): 85 x 45 mm / 120 x 45 mm
Weight: from ca. 4,0kg
Available character heights: From 1,0 mm, continuously adjustable in 1/10-steps
Available characters: Capital and small letters A to Z, figures 0 to 9, various punctuation marks
Fonts: Standard, similar to DIN 1451 in a continous line or in single dot characters, size 5 x 7 and 9 x 13
Protective cover: available
Mounting position: Any, from 0° to 360°
